Slide 3-12

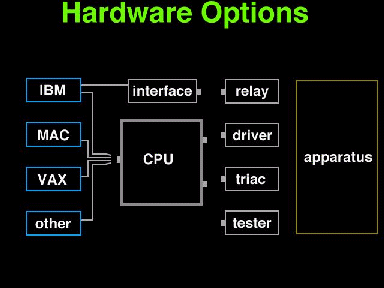

We provide three types of apparatus interfaces. A relay interface board provides 20 2-amp relays. The driver interface board provides 20 300ma integrated circuit drivers. The triac board provides 20 5-amp 200 volt AC triacs. These interface boards can be connected to a networkable experiment control computer (the CPU board supports two interface boards) or directly to an IBM clone through a printer port interface (the printer interface board supports one interface board). We also supply a simple 20 output LED tester board.
